Fibra Optica Os2 S/gel 12 Hilos Commscope Armadura X500 Mts

SOMOS TODOCONECTORES

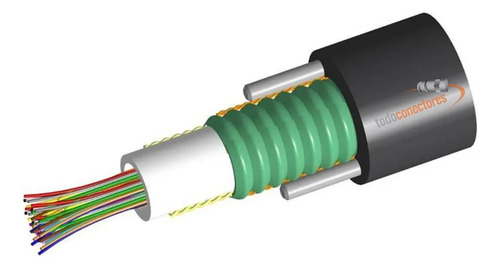

FIBRA OPTICA ANTIROEDOR SINGLEMODE SINGLE ARMOR SIN GEL 12H X 500 MTS
SKU 2293
Modelo 760053280
Marca COMMSCOPE
Cantidad publicada: 1 rollo de 500MTS (consultar otras medidas)

Características
Product Classification
Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber OSP cable
Product Series O-CA
General Specifications
Armor Type Corrugated steel
Cable Type Central loose tube
Construction Type Armored
Subunit Type Gel-filled
Jacket Color Black
Jacket Marking Feet
Subunit, quantity 1
Fibers per Subunit, quantity 12
Total Fiber Count 12
Dimensions
Buffer Tube/Subunit Diameter 4 mm | 0.157 in
Diameter Over Jacket 11 mm | 0.433 in

Material Specifications
Jacket Material PE
Mechanical Specifications
Minimum Bend Radius, loaded 165 mm | 6.496 in
Minimum Bend Radius, unloaded 110 mm | 4.331 in
Tensile Load, long term, maximum 800 N | 179.847 lbf
Tensile Load, short term, maximum 2700 N | 606.984 lbf
Compression 44 N/mm | 251.246 lb/in
Compression Test Method Flex
Flex Test Method FOTP-41
Impact 2.94 N-m | 26.021 in lb
Impact Test Method FOTP-25 | IEC 60794-1 E4
Strain See long and short term tensile loads
Strain Test Method FOTP-33 | IEC 60794-1 E1
Twist 10 cycles
Twist Test Method FOTP-85 | IEC 60794-1 E7
Vertical Rise, maximum 607 m | 1,991.47 ft
Optical Specifications
Fiber Type G.652.D and G.657.A1, TeraSPEED® |

REALIZAMOS FACTURA A, B, E (EXPORTACIÓN) Y A MiPyme
