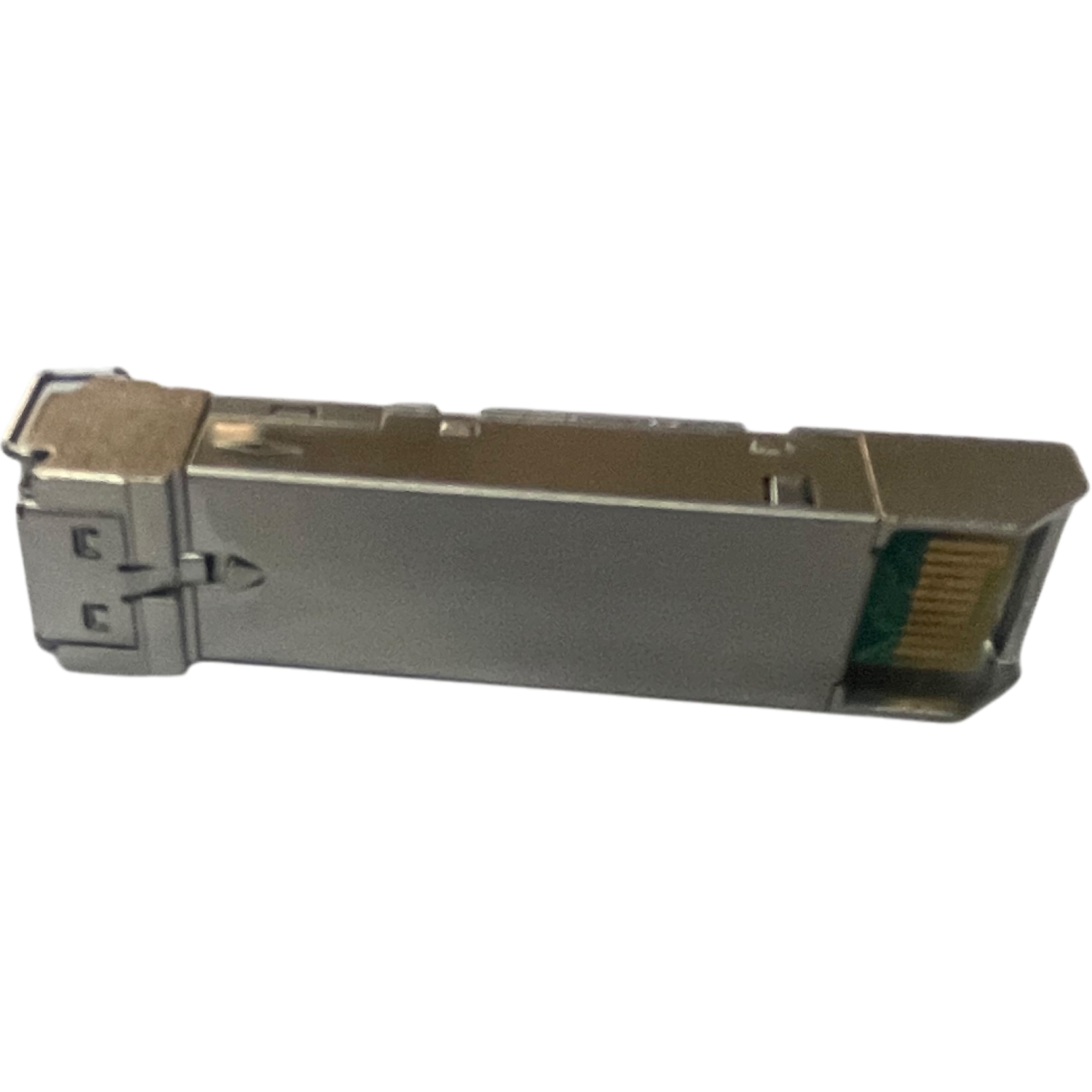

Huawei SFP-GE-LX-SM1310 1000BASE-LX SFP 1310nm 10km Original

SOMOS TODOCONECTORES

HUAWEI SFP-GE-LX-SM1310 SFP-GE-LX-SM1310LC

REALIZAMOS FACTURA A, B, E (EXPORTACIÓN) Y A MiPyme

SKU 4131

Modelo SFP-GE-LX-SM1310LC

Marca HUAWEI

Cantidad publicada 1 unidad

Características

Module name SFP-GE-LX-SM1310

Part Number 02315200

Model SFP-GE-LX-SM1310

Form factor eSFP

Application standard 1000BASE-LX10/LH

Connector type LC

Optical fiber type SMF

Working case temperature [°C(°F)] 0°C to 70°C (32°F to 158°F)

Digital diagnostic monitoring (DDM)Supported

Transmission rate [bit/s] 1 Gbit/s

Target transmission distance [km] Single-mode fiber: 10 km

Center wavelength [nm] 1310 nm

Maximum Tx optical power [dBm]-3.0 dBm

Minimum Tx optical power [dBm]-9.0 dBm

Minimum extinction ratio [dB]9 dB

Receiver Optical Characteristics

Rx sensitivity [dBm]-20.0 dBm

Overload power [dBm]-3.0 dBm
